AI PCB copilot · now exposing

Ship a PCB from
a single prompt.

Copper Mind turns a plain-English idea into a routed board — schematic, layout, DRC-clean Gerbers, and a priced BOM— using Claude + KiCad. Drop your email and we’ll bring you in the moment it’s ready.

idea → gerbers

We'll only email you about the launch. Unsubscribe anytime.

Copper Mind

PCB COPILOT

Routed · DRC clean

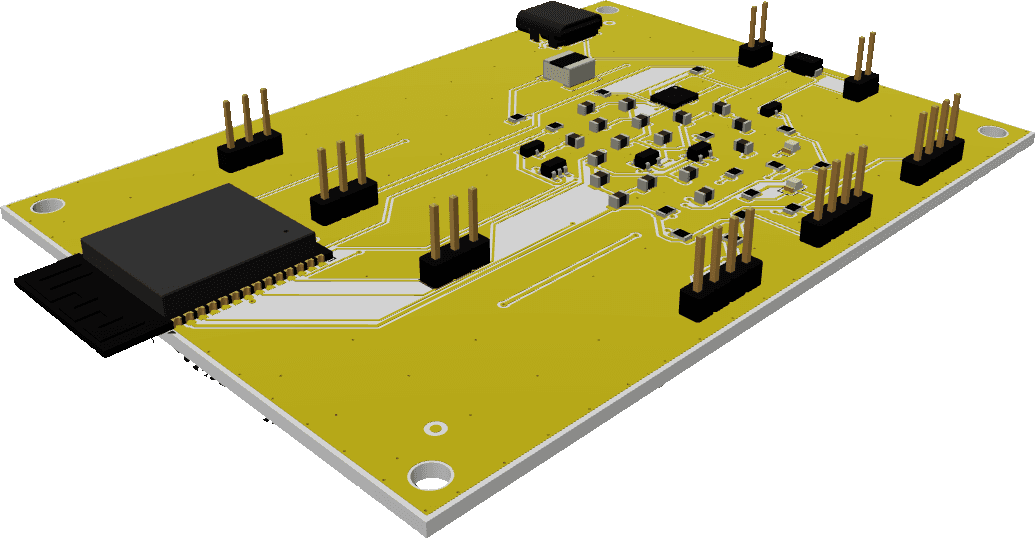

A routed, DRC-clean LiPo-charger PCB designed by Copper Mind, shown in the in-app 3D board viewer.

Project

lipo-charger

Dwg-No

F4887812

Rev

ROUTED

Sheet

1 / 7

Design a 1-cell LiPo charger — USB-C in, 500 mA, status LED. Route it and give me Gerbers + BOM.
export_gerbers ✓

Built 18 components · 14 nets on a 32×24 mm board.

Fully routedDRC 0 / 0BOM $4.88
Done — MCP73831charger, USB-C, 500 mA program resistor, CHG LED. Verified by KiCad DRC. Want me to push it to AISLER?
AutoOpusSonnet
Session spend$1.87
this turn+ $0.21

The actual Copper Mind workspace — board rendered live in the in-app 3D viewer.

Proof, not promises

Real KiCad DRC —
not an AI claim.

Every board is placed, routed, and checked by the actual KiCad engine — then the design-rule report comes straight back to you. Zero errors, every net routed, with a best-practice EMC review on top. The receipt is the product.

  • ▸ Real KiCad design-rule check — pass / warn / fail, no hand-waving
  • ▸ Freerouting round-trip — every net copper-routed
  • ▸ Best-practice EMC review (advisory, not a lab verdict)

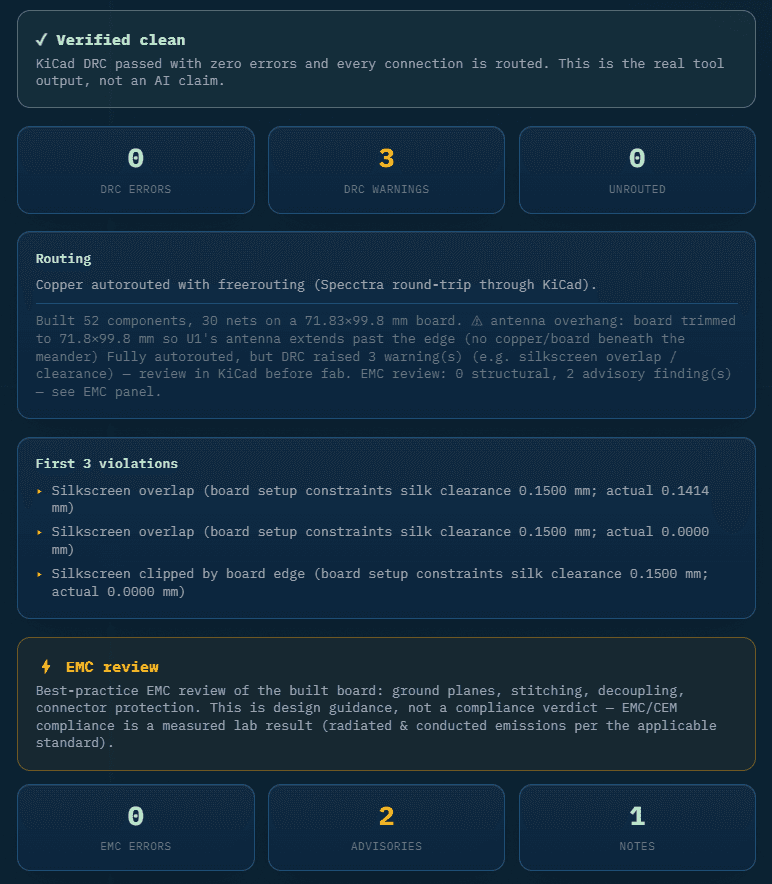

DRC ReportCopper Mind verification report — 0 DRC errors, 3 warnings, 0 unrouted nets, plus a best-practice EMC review.
01

Describe

Say it in plain English — "an ESP32 dev board with USB-C and a LiPo charger." No schematic capture, no part hunting.

02

Design

Claude drafts the netlist; the KiCad engine places, routes, and runs DRC — repairing until the board comes back clean.

03

Deliver

Export manufacturer-ready Gerbers and a live BOM, priced from Mouser, Nexar & Digi-Key. Order the board, build it.
